Product Details

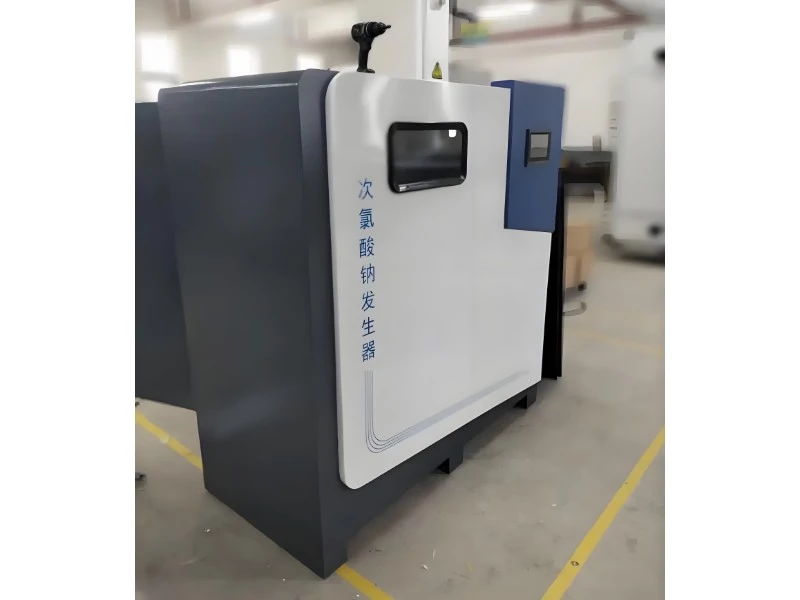

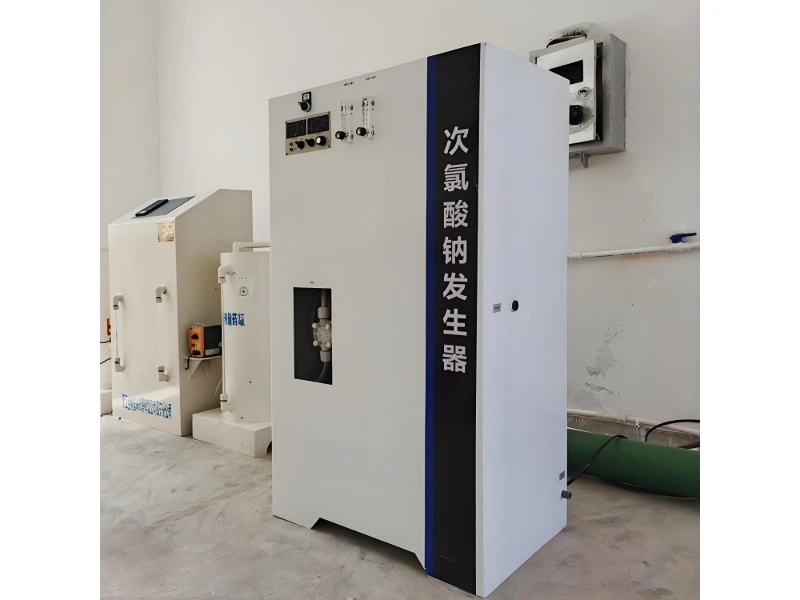

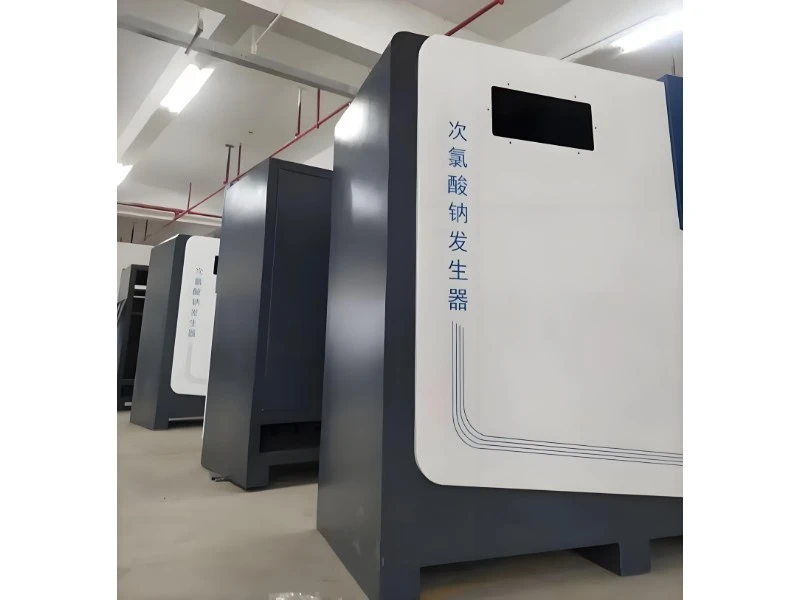

The sodium hypochlorite generator for wastewater treatment, after being upgraded, has a better salt - dissolving efficiency. It can be equipped with the automatic backwashing function, which can prolong the service life of electrode plate and the electrolysis efficiency. What's more, in order to make it more convenient for users to control the equipment, Hightide Intelligence Cloud has added the remote automation function. Users can remotely choose to turn off or start the equipment based on the situation of the water plant, which further improves the operational efficiency of the equipment, reduces its usage costs, and ensures disinfection compliance for water treatment.

The sodium hypochlorite generator has obtained the full range of hygiene permits for water - related products and the filing for hospital wastewater disinfection. With a high level of intelligence and simple operation, it leverages emerging technologies such as IoT and cloud - based big data. This enables one - click smart control of the equipment, remote control via mobile app, automatic fault alarms, and large - capacity data storage on the cloud. The equipment is suitable for projects of various sizes, including water purification in water plants of different scales, disinfection of various types of wastewater, and circulating water treatment.

Features

1.Smart Control:

(1) Intelligent Operation:

Equipped with IoT two - way communication and a precise algorithm to predict component operation throughout the process, enabling fully automatic system operation.

(2) Intelligent Monitoring:

Supported by a remote cloud service system for collaborative monitoring via PC - based networking and IoT - enabled mobile app control.

(3) Smart Fault Detection:

Automatic fault alarms with remote fault diagnosis.

2.Safety Assurance:

(1) Professionally designed to comply with national hydrogen safety standards.

(2) High - pressure blowers are installed to dilute trace amounts of hydrogen by over 100 times before discharge.

(3) A multi - point interlocked hydrogen monitoring system is in place for 24 - hour monitoring, with an alarm threshold set at 0.25%.

(4) Low levels of by - products in the output solution, well below national standards: chlorate (as ClO3 - ) < 290mg/l.

3.Energy - saving and consumption - reduction:

(1) Cost - effective production at 5.101yuan/kg of available chlorine.

Salt consumption ≤3.2kg/kg·Cl, refined sea salt at 680yuan/ton:3.2×0.68=2.176yuan; electricity consumption ≤4.5kw·h/kg·Cl, average electricity price of 0.6464yuan/kWh:4.5kW·h×0.65yuan/kWh=2.925yuan. Total cost:5.101yuan/kg of available chlorine.

(2) Smart dosing:

The dosing system features independent intelligent control software. By combining fixed flow rate control, water flow control, and residual chlorine control with advanced algorithms and PID closed - loop control, it smartly regulates chlorine dosing, minimizing disinfection costs while ensuring water quality compliance.

Applications

Drinking Water Treatment

Municipal Wastewater Treatment

Rural Water Supply

Hospital Wastewater Disinfection

Swimming Pool Water Sanitization

Industrial Circulating Water Systems

Textile Wastewater Treatment

Aquaculture Wastewater Management
